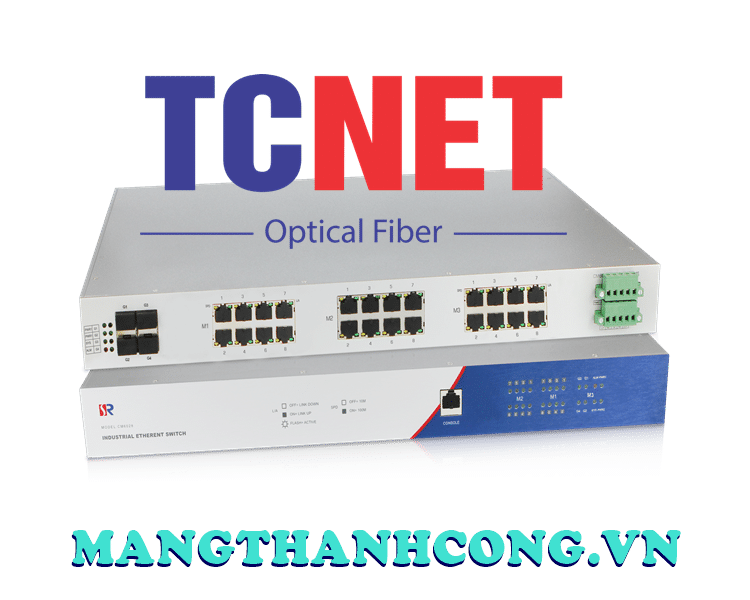

Switch công nghiệp WINTOP YT-CM6028-4GF24T | Switch công nghiệp có quản lý lắp rack, 24 cổng 10/100Base-T(X) + 4 cổng quang 1000Base-X(SFP), nguồn AC 100~240V

YT-CM6028-4GF24T Gigabit Ethernet switch is a managed industrial-grade Ethernet switch, including 4 optical 24 electrical, 12 optical 16 electrical, 20 optical 8 electrical, 16 optical 12 electrical, fanless, low power consumption, industrial 4-level design, with IP40 Protection level. It has a working temperature of -40 ~ 85°C, has a strong sturdiness, is specially designed for network communication in a harsh application environment, and has high EMI/EMS protection capabilities. Supports advanced management and security features, such as IGMP snooping, IEEE 802.1Q VLAN, QoS, port mirroring, SNMP, RMON, etc., and Link Aggregation, WT-Ring and RSTP/STP for redundant backup increase the network Reliability and availability.

• Features
• provide4 Ge one thousand trillion optical port, 24- 100M electrical ports
• Fanless design,IP40 protection level, impact resistant aluminum shell
• Support dual power supply redundantbackup input, applicable voltage range AC/DC85 ~ 265V
• EMCindustry level 4 electromagnetic compatibility standard
• Command line (CLI ) +WEB interface, can quickly configure network functions
• supporting configurationthe WT-Ring (switching time < 2 0ms ) and STP / RSTP ring network
• SNMP V1/V2c/V3, support WTNMS integrated network management
• Ordering information

packing list:

• One industrial Ethernetswitch
• Installation accessories
• One U disk, including user manual
• Warranty card
• Certificate
• • Technical parameters

  interface	Serial port: RS-232 (interface type: RJ45 slot) Gigabit optical port: 1000Mbps (interface type: SFP slot) 100M electrical port: 10/100Mbps adaptive, Full/Half duplex mode, support MDI/MDI-X. LED indicator: PWR1, PWR2, ALM, Link/ACT, SPD, SYS Relay: 3 channels, power 1 channel, power source 2 channel, power alarm channel.
  Support standard	IEEE 802.3 10BaseT IEEE 802.3u 100BaseT IEEE 802.3z 1000BaseFX IEEE 802.3x flow control IEEE 802.1D STP IEEE 802.1w RSTP IEEE 802.1p Cos IEEE 802.1Q VLAN
  protocol	IGMP Snooping, GMRP, GVRP, SNMPv1/v2c/v3, TFTP, SNTP, RMON, HTTP, SSH, Telnet, Syslog, LLDP, EtherNet/IP, Modbus/TCP MIB: MIB-II, BRIDGE MIB, Ethernet MIB, IF MIB, RMON MIB Group 1, 2, 3, 9
  Switch properties	Qos queue: 4 VLAN-ID: 1-4094 Backplane bandwidth: 12.8Gbps MAC address table: 8K Message buffer size: 3Mbits
  Power requirement	Input voltage: support two redundant backup, AC/DC85～265V Input current: 210mA max
  Physical properties	Shell: Aluminum shell, IP40 protection Size: 440mm*320mm*44mm Weight: 3100g Installation method: rack
  working environment	Working temperature: -40 ~ 85°C (-4 0~ 185°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Environmental relative humidity: 5 ~ 95% (non-condensing)
  Industry standards and Certification	Electromagnetic Interference (EMI): FCC Part 15/CISPR22 (EN55022): Class A Electromagnetic susceptibility (EMS): IEC61000-4-2 (ESD) Level 4, IEC 61000-4-3 (RS) Level 3, IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4, IEC 61000- 4-6(CS) Level 3 Vibration resistance: IEC 60068-2-6 Shock resistance: IEC 60068-2-27 Free fall: IEC 60068-2-32 Note: Please check the latest certification status on the official website of Yuantuo. MTBF (Mean Time Between Failure) Time: 500000 h
  Quality Assurance	3 years

  For more information, please view the data sheet in “Related Downloads”
