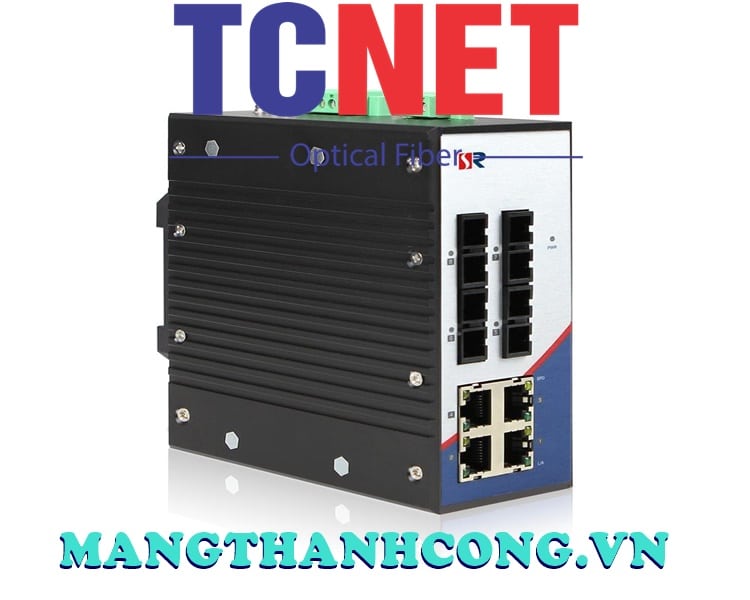

Bộ chuyển đổi công nghiệp WINTOP YT-RS208-4F4T | Bộ chuyển đổi quang điện 4 cổng 10/100Base-T(X) + 4 cổng quang 100Base-FX (Single mode/SC/20km), gắn DIN, nguồn DC18~75V

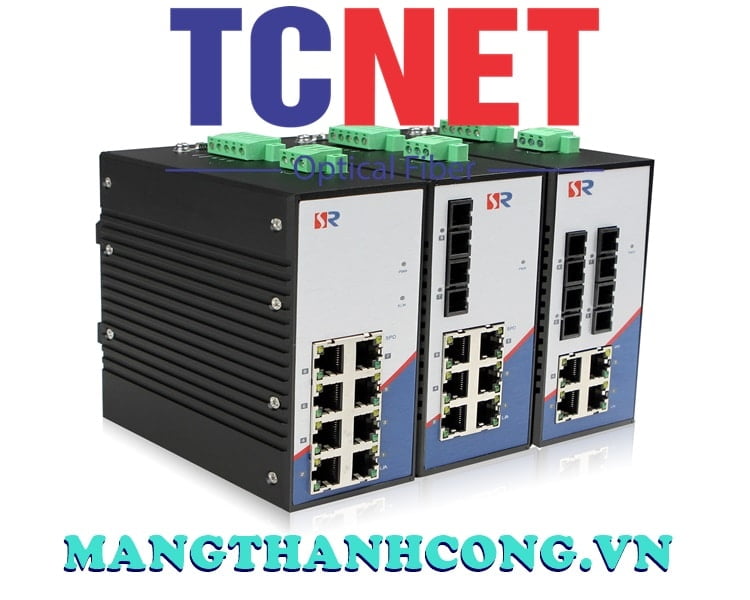

RS208 100M series is a guide rail industrial Ethernet switch developed by Yuantuo Optoelectronics for the needs of wind power, distribution network, transportation, petroleum and petrochemical industries. Including models of 8 electricity, 2 light 6 electricity, 4 light 4 electricity specifications, with a metal casing with IP40 protection. High-speed packet forwarding capability and abundant backplane bandwidth ensure clear and smooth image transmission. The anti-vibration card rail seat is available in iron and aluminum shell materials, fan-free low power consumption design, -40℃~+85℃ extreme environment temperature adaptability and good EMC electromagnetic compatibility performance, so that this series of products have The ability to work stably and reliably in harsh industrial environments.

• Features
• Main ports: provide100M optical ports and 100M electrical ports, and electrical ports support 10/100Mbps adaptive;
• Power features:DC9-60V AC110-240V supports dual power source input, anti- reverse protection;
• Transmission distance:electrical port 0-1 0 0 meters ; optical port 20km
• Compliant with standards:IEEE802.3 , IEEE802.3u standards;
• Security and anti-interference: excellent lightning protection, anti-static and anti-electromagnetic interference capabilities, support 1 relay alarm output ;
• appearance of the structure:IP40 protection level, high-strength aluminum shell and an outer metal shell , to DIN rail mounting, no fan, low-power design ;
• Ordering information

packing list:

• Industrial Ethernet Switch
• Installation accessories
• Instruction manual
• Warranty card
• Certificate
• • Technical parameters

  project		description
  model		RS208 100M series
  Power section	Power supply	Support dual power input
  	Adapt to voltage range	DC9-60V , AC110-240V
  	Power consumption	＜5 W
  Network port parameters	network port	Electrical port: 10/100Mbps Optical port: 100Mbps
  	Transmission distance	Electrical port: 0-100m Optical port: 20km
  Network switching specifications	Network standard	Support IEEE 802.3 IEEE802.3u
  	Packet buffer	512K bit
  	MAC address capacity	1 K
  Status indication	Power light	PWR
  	SPD light	Light on indicates 100M , light off indicates 10M
  	L/A electrical port indicator	. 1 th (green) light lamp indication Link , blinking indication Act
  Certification standard	Electromagnetic interference (EMI)	FCC Part 15/CISPR22 ( EN55022 ): Class A
  		IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge
  		IEC61000-4-3 (RS): 10V/m (80～1000MHz)
  Certification standards	Electromagnetic susceptibility (EMS)	IEC61000-4-4 (EFT): power line: ±4kV; data line: ±2kV
  		IEC61000-4-5 (Surge): power line: CM±4kV; data line: ± 2 kV
  		IEC61000-6-2 (General Industrial Standard)
  	Anti-vibration	IEC 60068-2-6
  	Impact resistance	IEC 60068-2-27
  	Free fall	IEC 60068-2-32
  Operating environment	Operating temperature	– . 4 0 deg.] C ~ 85 deg.] C
  	storage temperature	-40 ℃～85 ℃
  	Humidity (no condensation)	5 -95%
  Body attributes	Dimensions ( L×W×H ) including interface	135 mm* 130 mm* 5 5mm / 135mm*1 08 mm* 44 mm
  	material	Aluminum shell /iron shell
  	colour	black
  	weight	850 g
  reliability	Mean Time Between Failure (MTBF)	≥ 5 00 000h
  	Warranty	3- year warranty

  For more information, please view the data sheet in “Related Downloads”

•
