Thương hiệu | Wintop |
Bộ chuyển đổi quang điện công nghiệp Industrial DIN-Rail 2-port 10/100Base-T(X)+1-port 100Base-FX (Single-mode/dual fiber/20Km/SC) , DIN Rail,DC18-75V mã YT-RS203L-1F2T or YT-RS203-1F2T

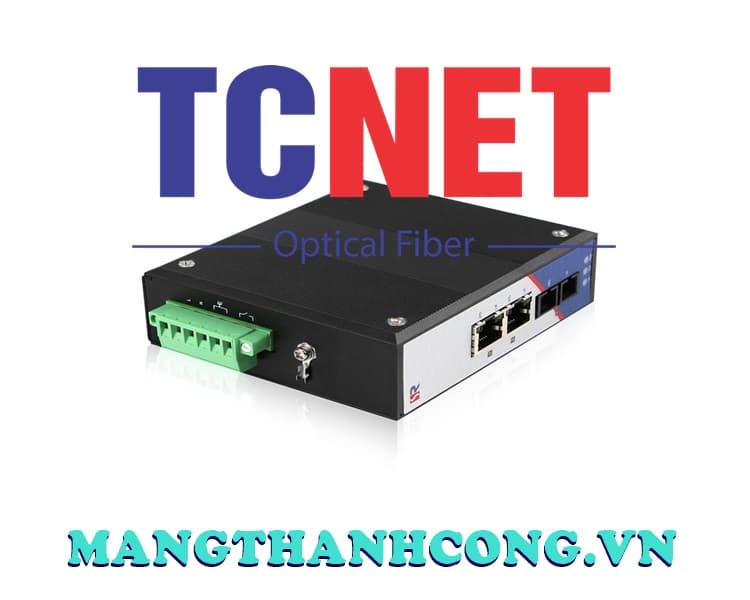

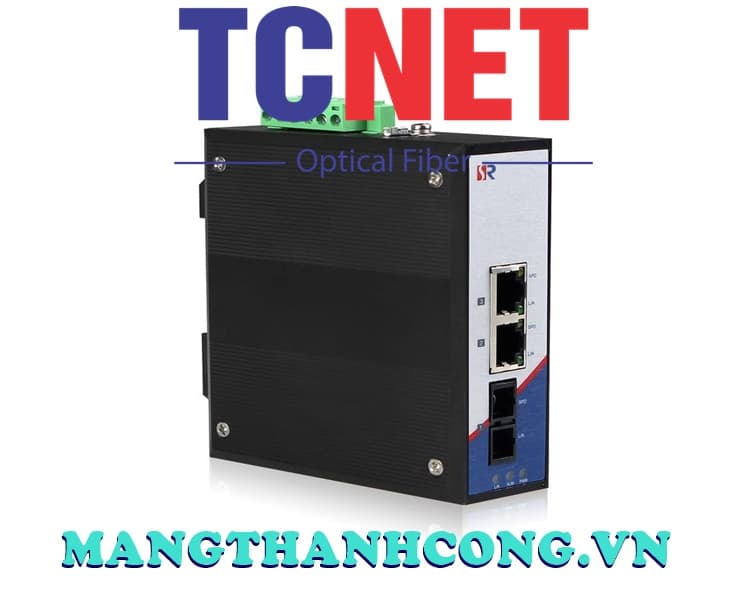

RS203 100M series is a guide rail type industrial-grade transceiver developed by Yuantuo Optoelectronics for the needs of wind power, distribution network, transportation, petroleum and petrochemical industries. Including RS203-1F2T: Provides 1 100M optical port and 2 100M electrical ports, with an aluminum housing with IP40 protection; RS203L-1F2T: Provides 1 100M optical port and 2 100M electrical ports, with IP40 rating Protective metal casing. High-speed packet forwarding capability and abundant backplane bandwidth ensure clear and smooth image transmission. The anti-vibration card rail seat, -40℃~+85℃ extreme environmental temperature adaptability and good EMC performance, make this series of products have the ability to work stably and reliably in harsh industrial environments.
- Features
- Main ports: provide100M optical ports and 100M electrical ports, and electrical ports support 10/100Mbps adaptive;
- Power features:DC9-60V AC110-240V supports dual power source input, anti- reverse protection;
- Transmission distance:electrical port 0-1 0 0 meters ; optical port 20km
- Compliant with standards:IEEE802.3 , IEEE802.3u standards;
- Security and anti-interference: excellent lightning protection, anti-static and anti-electromagnetic interference capabilities, support 1 relay alarm output ;

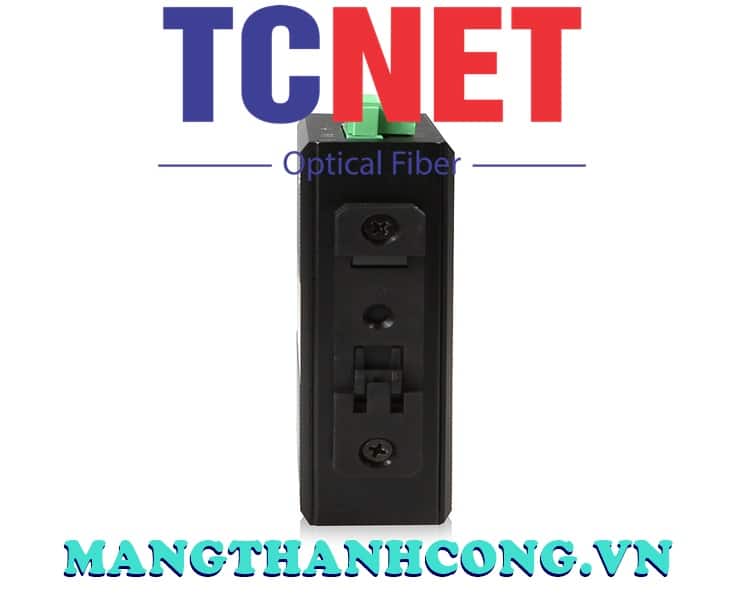

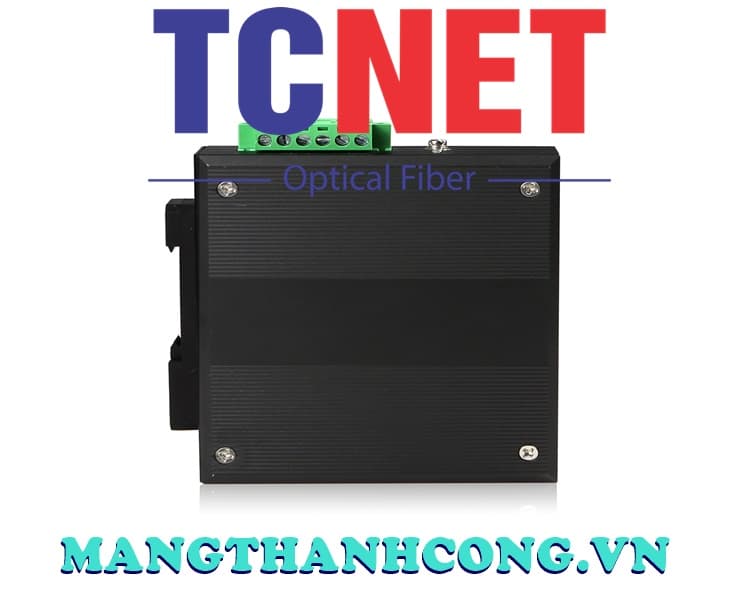

- appearance of the structure:IP40 protection level, high-strength aluminum shell and an outer metal shell , to DIN rail mounting, no fan, low-power design
- Ordering information
order information | |
RS203-1F2T | 1 100M optical port + 2 100M electrical ports, power supply characteristics: DC9-60V , AC110-240V |
RS203L-1F2T | 1 100M optical port + 2 100M electrical ports, power supply characteristics: DC9-60V, AC110-240V |
packing list:
- Fiber optic transceiver
- Installation accessories
- Instruction manual
- Warranty card
- Certificate
- Technical parameters
project description model RS203 100M series Power section Power supply Support dual power input Adapt to voltage range DC9-60V , AC110-240V Power consumption <5 W Network port parameters network port Electrical port: 10/100Mbps Optical port: 100Mbps Transmission distance Electrical port: 0-100m Optical port: 20km
Network switching specifications Network standard Support IEEE 802.3 , IEEE 802.3 u Packet buffer 512K bit s MAC address capacity 1 K Status indication Power light PWR SPD light Light on indicates 100M , light off indicates 10M L/A electrical port indicator 2 th (green) light lamp indication Link , blinking indication Act Certification standard
Electromagnetic interference (EMI) FCC Part 15/CISPR22 ( EN55022 ): Class A IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-3 (RS): 10V/m (80~1000MHz) Certification standards Electromagnetic susceptibility (EMS) IEC61000-4-4 (EFT): power line: ±4kV; data line: ±2kV IEC61000-4-5 (Surge): power line: CM±4kV; data line: ± 2 kV IEC61000-6-2 (General Industrial Standard) Anti-vibration IEC 60068-2-6 Impact resistance IEC 60068-2-27 Free fall IEC 60068-2-32 Operating environment Operating temperature – . 4 0 deg.] C ~ 85 deg.] C storage temperature -40 ℃~85 ℃ Humidity (no condensation) 5 -95% Body attributes Dimensions ( L×W×H ) including interface 110 mm * 95 mm * 30 mm material 110 mm * 95 mm * 30 mm /113mm*110mm*33mm colour Aluminum shell /iron shell weight 350 g reliability Mean Time Between Failure (MTBF) ≥ 5 00 000h Warranty 3- year warranty For more information, please view the data sheet in “Related Downloads”
