Bộ chuyển đổi công nghiệp WINTOP YT-RS205-1F4T-AT | Bộ chuyển đổi quang điện PoE 4 cổng 10/100Base-T(X) PSE + 2 cổng quang 100Base-FX (Single mode/SC/20km), gắn DIN, nguồn DC46~75V

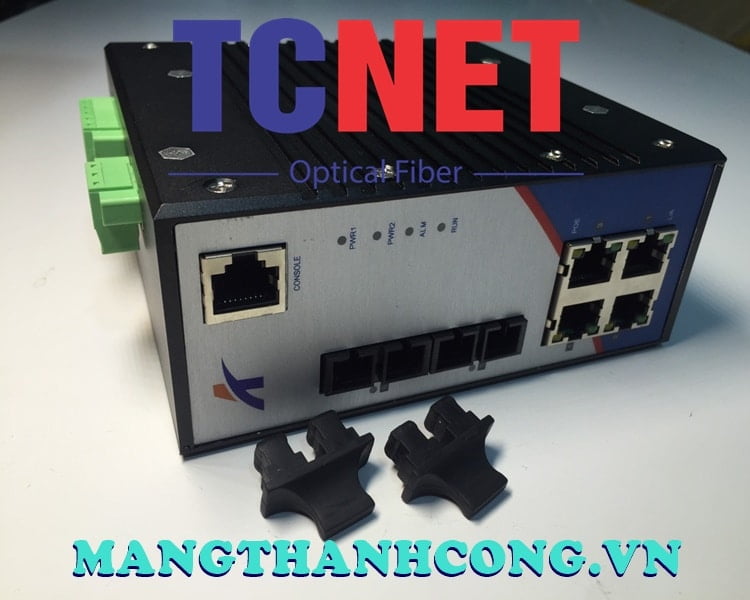

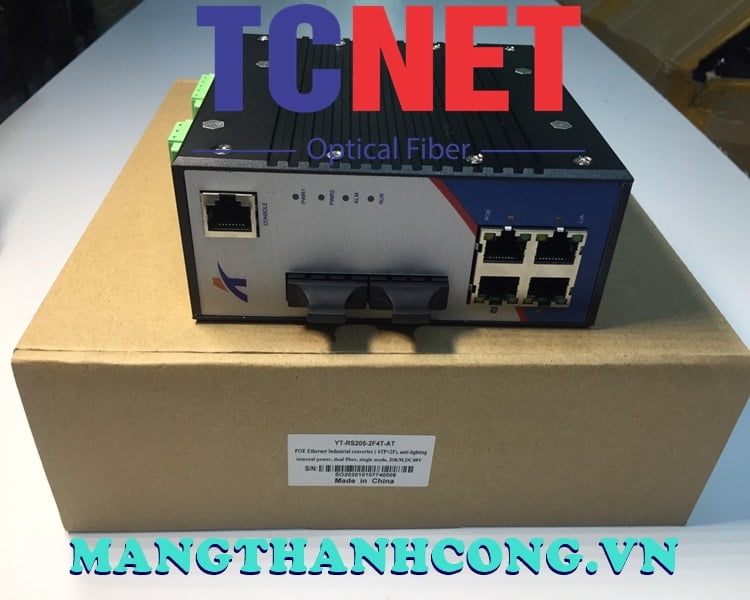

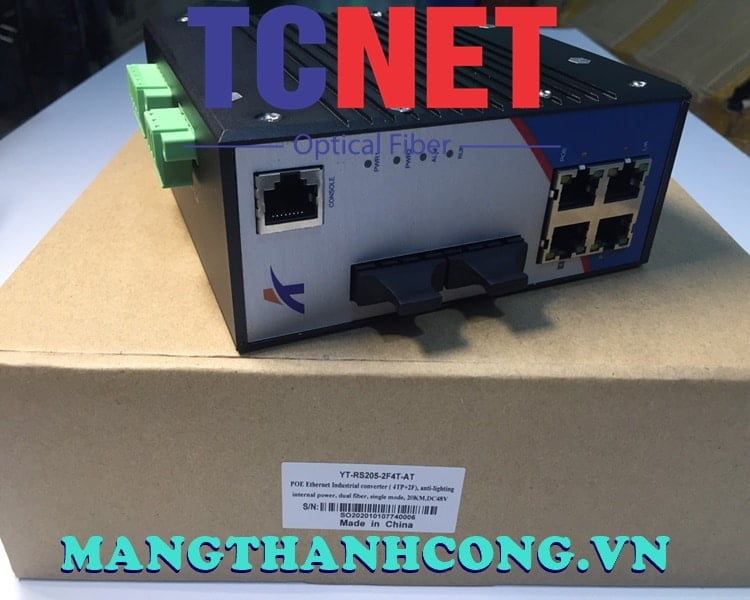

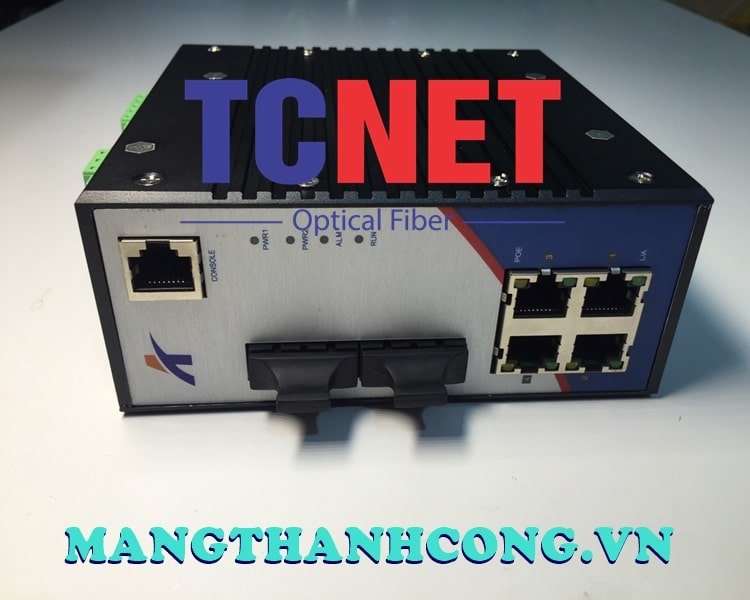

Bộ chuyển đổi quang điện công nghiệp Industrial DIN-Rail POE 4×10/100Base-T(X) P.S.E.ports + 2×100Base-FX (Single-mode, dual fiber, 20Km, SC) ports ,DIN Rail,DC46-75V mã YT-RS205-2F4T-AT

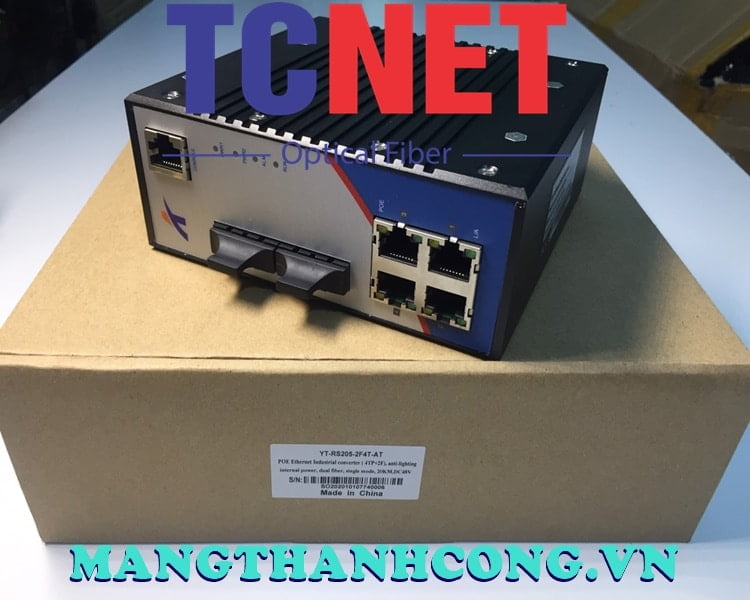

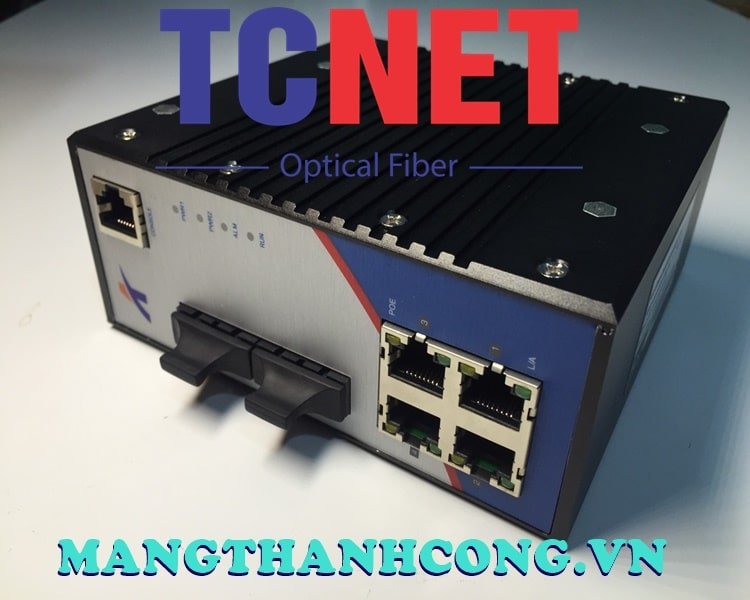

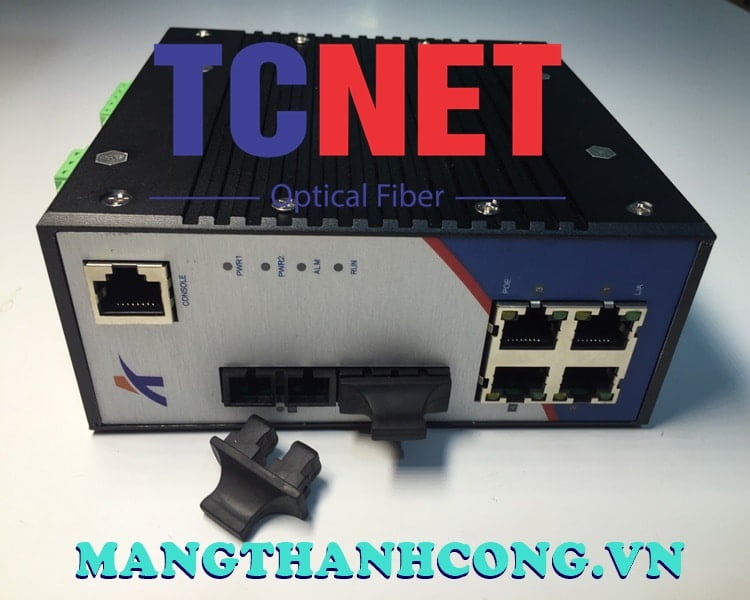

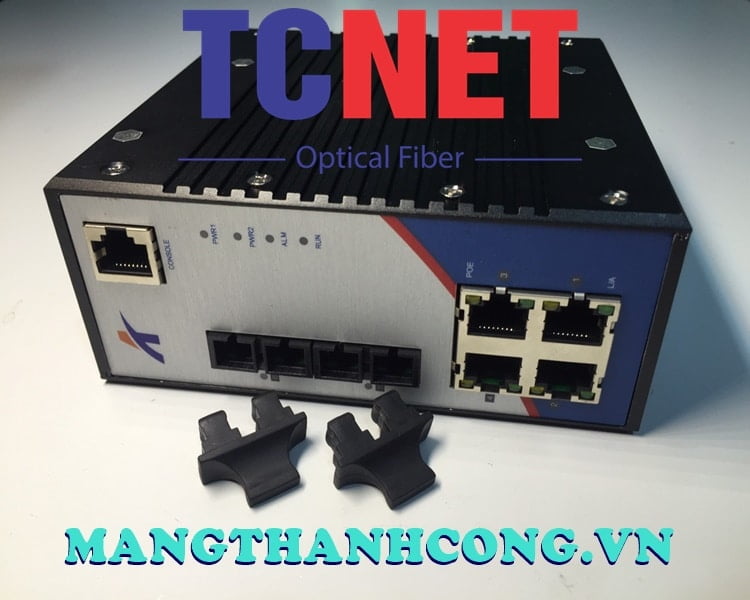

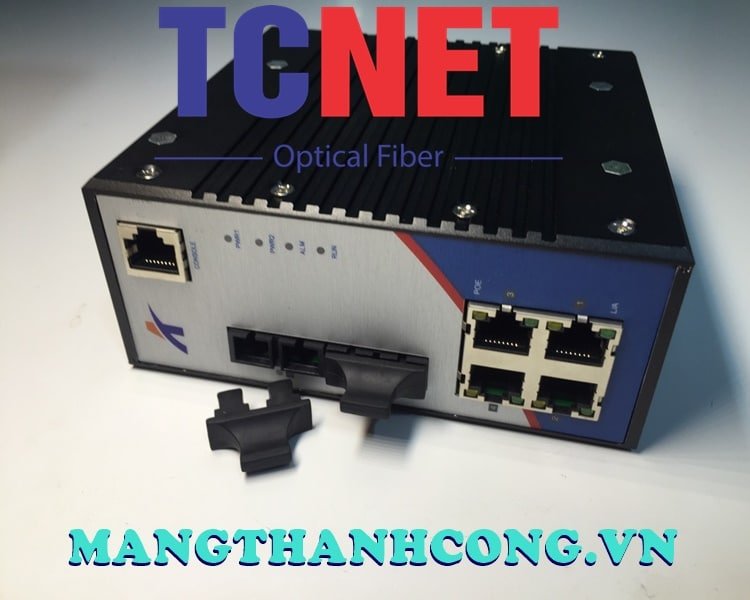

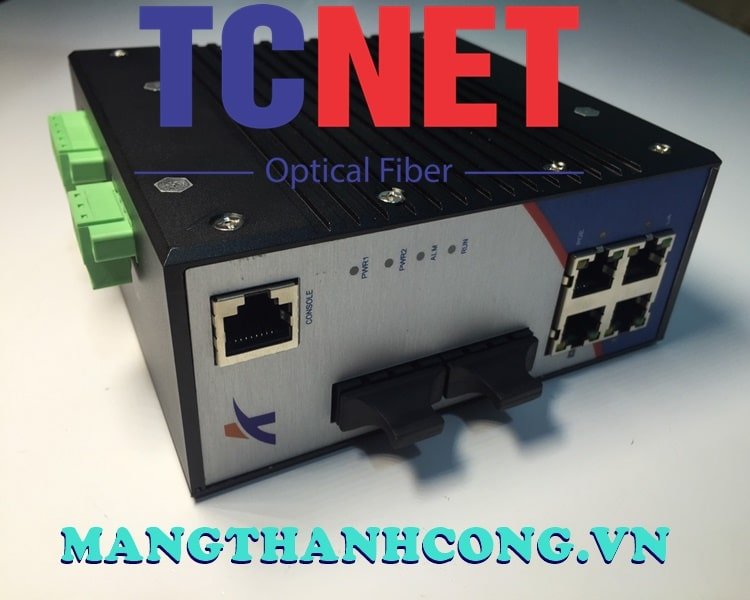

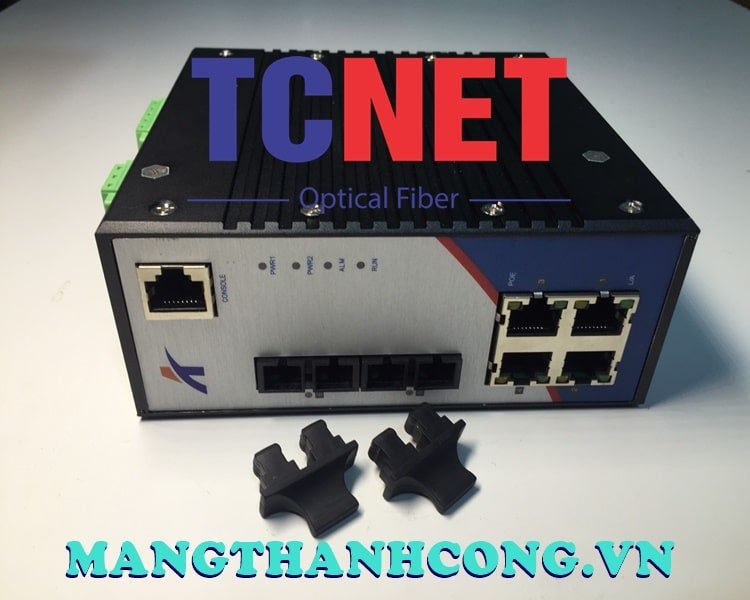

YT-RS205-2F4T-AT is a rail type industrial Ethernet switch developed by Yuantuo Optoelectronics for the needs of wind power, distribution network, transportation, petroleum and petrochemical industries. The product has 4 downlink 100M electrical ports, providing high-speed packet forwarding capability and ample backplane bandwidth to ensure clear and smooth transmission of images. This product has an IP40-protected metal shell, a strong vibration-resistant rail seat, -40℃~85℃ extreme ambient temperature adaptability and good EMC electromagnetic compatibility performance, so that this series of products have stable and reliable operation in harsh industrial environments ability. Downlink 1-4 electrical ports support IEEE802.3af and IEEE802.3at standard POE power supply.

• Features
• Provide 2 100M uplink optical ports, 4 100M downlink optical ports
• The electrical port supports10/100Mbps adaptive, both support MDI/MDIX
• Applicable voltage range12~75V DC
• The electrical port supportsIEEE802.3af and IEEE802.3at standard POE power supply
• Has excellent lightning protection, anti-static and anti-electromagnetic interference capabilities
• Suitable forworking environment of -40 ℃～85 ℃
• • Technical parameters

  interface	Optical port: 100Mbps (interface type: SC, SFP optional) Electrical port: 10/100Mbps adaptive, Full/Half duplex mode, support MDI/MDI-X. Transmission distance is 0-100m. LED indicator: PWR1, PWR2, L/A, SPD, POE
  Switch properties	Backplane bandwidth: 1.2Gbps message buffer size: 1Mb MAC address table: 8K jumbo frame: 10K Bytes
  Power requirement	Input voltage: redundant dual DC (DC12~75V) wide voltage current input, reverse connection protection Input current: max 2A
  Physical properties	Shell: metal, IP40 protection Size: 135x126x44mm Weight: 650g Installation method: card rail installation
  working environment	Working temperature: -40 ~ 85°C (-40 ~ 185°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Ambient relative humidity: 5 ~ 95% (non-condensing)
  Industry standards and Certification	Electromagnetic Interference (EMI): FCC Part 15/CISPR22 (EN55022): Class A Electromagnetic susceptibility (EMS): IEC61000-4-2 (ESD) Level 4, IEC 61000-4-3 (RS) Level 3, IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4, IEC 61000- 4-6 (CS) Level 3 Anti-vibration: IEC60068-2-6 Shock resistance: IEC60068-2-27 Free fall: IEC60068-2-32 Note: Please check the latest certification status on the official website of Yuantuo. MTBF (Mean Time Between Failure) Time: 500000h
  Quality Assurance	3 years

•
