Thương hiệu | Wintop |

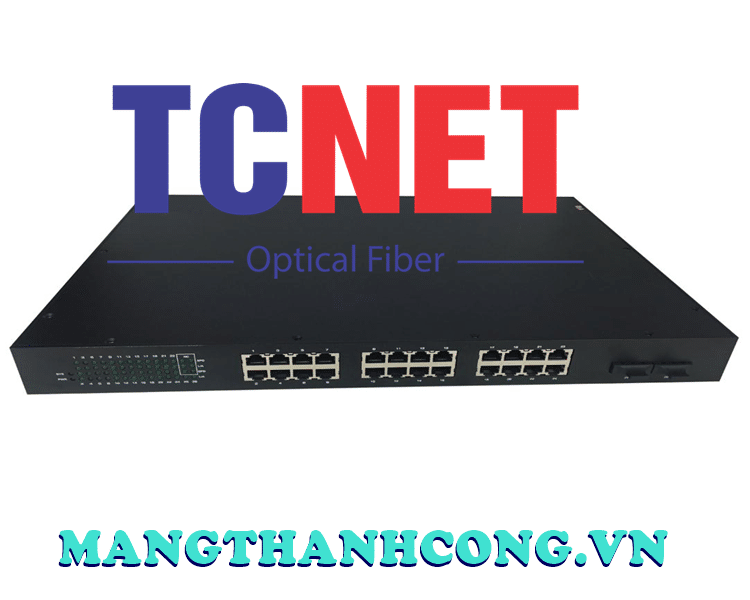

Switch quang điện 24-port 10/100Baes-T(X) 2 port 100Base-X Rack type, AC/DC85~265V,UNMANAGED mã YT-CM2026L-2F24T
The YT-CM2026L-2F24T Ethernet switch product is a rack-mounted industrial Ethernet switch, equipped with 2 100M optical fiber ports and 24 100M Ethernet ports. It adopts fanless, low power consumption, industrial 4-level design, which is simple and flexible to use, easy to install, superior in performance, and cost-effective. This product has a working temperature of -40 ~ 75 ℃, has super robustness, can adapt to harsh outdoor environments, and has high EMI / EMC protection capabilities. Each product has passed 100% aging tests to ensure quality. This product has been widely used in the Ethernet communication system for the security industry.
- Features
- provide24- Mbps electrical ports, 2 Ge Mbps optical ports
- The electrical port supports10/100Mbps adaptive, both support MDI/MDIX
- Applicable voltage rangeAC/DC85 ~ 265V
- Meet theEMC industry level 4 electromagnetic compatibility standards (lightning protection, static electricity, surge, group pulse)
- fanless,finned coated metal outer shell; built industrial power
- Applicable- 4 0 ° C for ~ 75 ° C for the working environment
- Ordering information
order information | |
CM2026L-2F24T | 2 100M optical ports + 24 100M electrical ports, power supply characteristics: AC/DC85 ~ 265V |
packing list:
- Ethernet switch
- Installation accessories
- Instruction manual
- Warranty card
- Certificate
Tag: rack-mounted unmanaged switch
- Technical parameters
interface | Optical port: 100Mbps (interface type: 1X9 module, optional SC, ST, FC) 100M electrical port: 10/100Mbps adaptive, Full/Half duplex mode, support MDI/MDI-X. Transmission distance is 0-100m. LED indicator: PWR, Link, SPD |
Support standard | IEEE 802.3 10BaseT IEEE 802.3u 100BaseT and 100BaseFX |
Switch properties | Backplane bandwidth: 5.2Gbps MAC address table: 8K Message buffer size: 3Mbits Packet forwarding rate: 3.88 Mpps |
Power requirement | Input voltage: AC/DC85~265V Input current: Max 0.2A |
Physical properties | Shell: metal, IP40 protection Size: 440x320x 44 mm Weight: 2400g Installation method: rack installation |
working environment | Working temperature: -40 ~ 75°C (-40 ~ 176°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Environmental relative humidity: 5 ~ 95% (non-condensing) |
Industry standards and Certification | Electromagnetic Interference (EMI): FCC Part 15/CISPR22 (EN55022): Class A Electromagnetic susceptibility (EMS): IEC61000-4-2 (ESD) Level 4, IEC 61000-4-3 (RS) Level 3, IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4, IEC 61000- 4-6 (CS) Level 3 Vibration resistance: IEC 60068-2-6 Shock resistance: IEC 60068-2-27 Free fall: IEC 60068-2-32 Note: Please check the latest certification status on the official website of Yuantuo. MTBF (Mean Time Between Failure) Time: 500000 h |
Quality Assurance | 3 years |
For more information, please view the data sheet in “Related Downloads”
