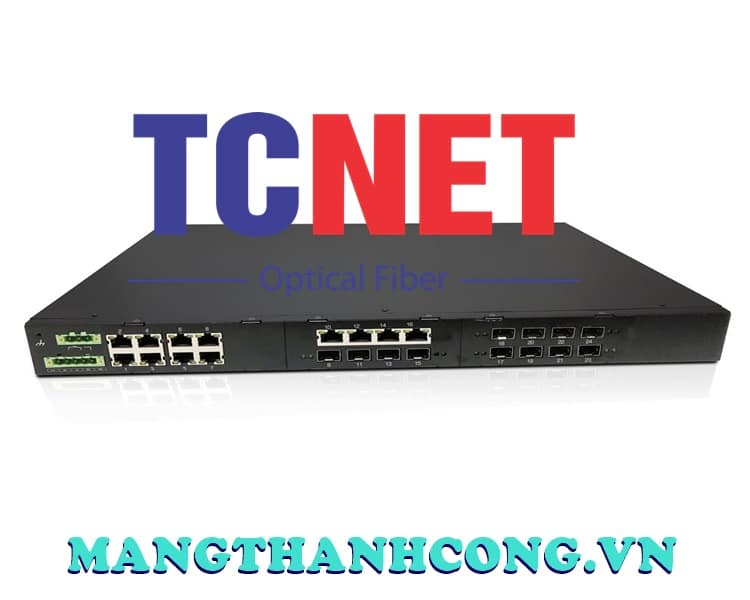

CM6024 Gigabit series is a managed Ethernet switch, including 12 optical 12 electrical, 8 optical 16 electrical, 16 optical 8 electrical, fanless, low power consumption design, and IP40 protection level. It has a working temperature of -40 ~ 85°C, has a strong sturdiness, is specially designed for network communication in a harsh application environment, and has high EMI/EMS protection capabilities. Support advanced management and security features, such as IGMP snooping, IEEE 802.1Q VLAN, QoS, ACL, port mirroring, SNMP, RMON, etc., and Link Aggregation, ERPS and STP/RSTP/MSTP for redundant backup are added The reliability and availability of the network.

• Features
• Provide12 Gigabit optical ports, 12 Gigabit electrical ports
• fanless design,the IP . 4 0 degree of protection, impact resistance metal housing
• Applicable electricvoltage range of AC / DC85 ~ 265V
• -40 ~ 85℃ working temperature
• Command line (CLI ) +WEB interface, can quickly configure network functions
• Support configuration ofERPS and STP/RSTP /MSTP ring network protection
• Ordering information

packing list:

• One switch
• Installation accessories
• One U disk, including user manual
• Warranty card
• Certificate
• Technical parameters

• interface	Gigabit optical port: 100/1000Mbps (interface type: SFP slot) Gigabit electrical port: 10/100/1000Mbps adaptive, Full/Half duplex mode, support MDI/MDI-X. LED indicator: PWR, SYS, ALM, SPD, L/A
  Support standard	IEEE 802.3 10BaseT IEEE 802.3u 100BaseT and 100BaseFX IEEE 802.3z 1000BaseFX and IEEE 802.3ab 1000BaseT IEEE 802.3x flow control IEEE 802.1D STP IEEE 802.1w RSTP and IEEE 802.1s MSTP IEEE 802.1p Cos IEEE 802.1Q VLAN
  protocol	IGMP Snooping, GVRP, SNMPv1/v2c/v3, TFTP, SNTP, RMON, HTTP, HTTPS,SSH, Telnet, Syslog, LLDP, Loop Protection, LACP, ERPS, EtherNet/IP, Modbus/TCP MIB: MIB-II, BRIDGT MIB, Ethernet MIB, IF MIB, RMON MIB Group 1, 2, 3, 9
  Switch properties	Qos queue: 8 VLAN-ID: 1-4094 Backplane bandwidth: 48Gbps MAC address table: 8K Message buffer size: 3Mbits Jumbo frame: 9600bytes
  Power requirement	Input voltage: AC/DC85～265V Input current: 0.5A max
  Physical properties	Shell: metal, IP40 protection Size: 440mm*320mm*44mm Weight: 3100g Installation method: rack
  working environment	Working temperature: -40 ~ 85°C (-40~ 185°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Environmental relative humidity: 5 ~ 95% (non-condensing)
  Industry standards and Certification	Electromagnetic Interference (EMI): FCC Part 15/CISPR22 (EN55022): Class A Electromagnetic susceptibility (EMS): IEC61000-4-2 (ESD) Level 4, IEC 61000-4-3 (RS) Level 3, IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4, IEC 61000- 4-6(CS) Level 3 Vibration resistance: IEC 60068-2-6 Shock resistance: IEC 60068-2-27 Free fall: IEC 60068-2-32 Note: Please check the latest certification status on the official website of Yuantuo. MTBF (Mean Time Between Failure) Time: 500000 h
  Quality Assurance	3 years

  For more information, please view the data sheet in “Related Downloads”

•
