Thương hiệu | Wintop |
Chuẩn | Multimode |

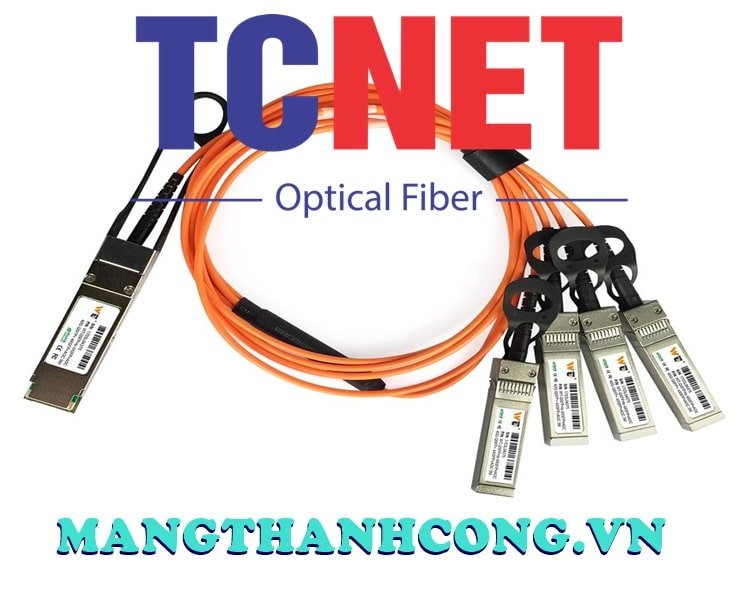

Module quang SFP AOC 40G QSFP Multimode ra 4x10G SFP Multimode mã YT- QSFP+ to 4SFP+ AOC
PRODUCT FEATURES
QSFP+ AOC end:
l Compliant to the 40GBASE-SR4 and XLPPI Specification per IEEE 802.3ba-2010 and supporting 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
l Compliant to the industry standard SFF-8436 QSFP+ Specification
l Power Level 1: Max Power < 1.5 W
l Operate at 10.3125 Gbps per channel with 64b/66bencoded data for 40GbE application and at 10 Gbps with 8b/10b compatible encoded data for 40G-IB-QDR application
Each 4× SFP+ end:
l Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module
l Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor “IPF”
l Maximum power dissipation 0.35W per end.
Active Optical Cable Assembly:
l 0 to 70 C degree case temperature operating range
l Proven High Reliability 850 nm technology: Wintop VCSEL transmitter and Wintop PIN receiver
l Hot pluggable for ease of servicing and installation
l Two Wire Serial interface
l Utilizes optical fiber for high density and thin, lightweight cable management
APPLICATIONS
l 40GbE and 10GbE break-out applications for Datacom switch and router connections
l 40G to 4×10G density applications for Datacom and Proprietary protocol applications
l Datacenter
